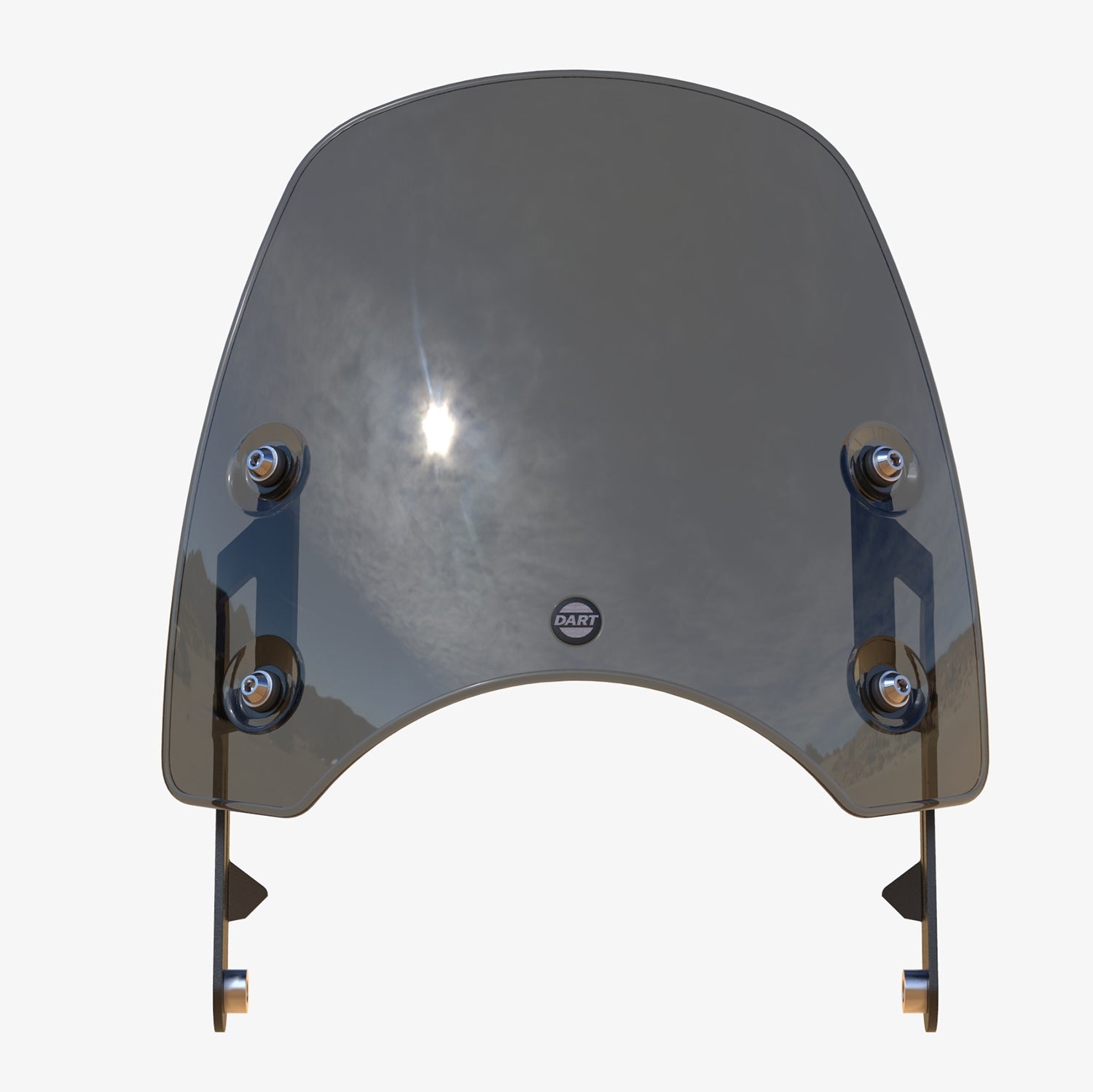

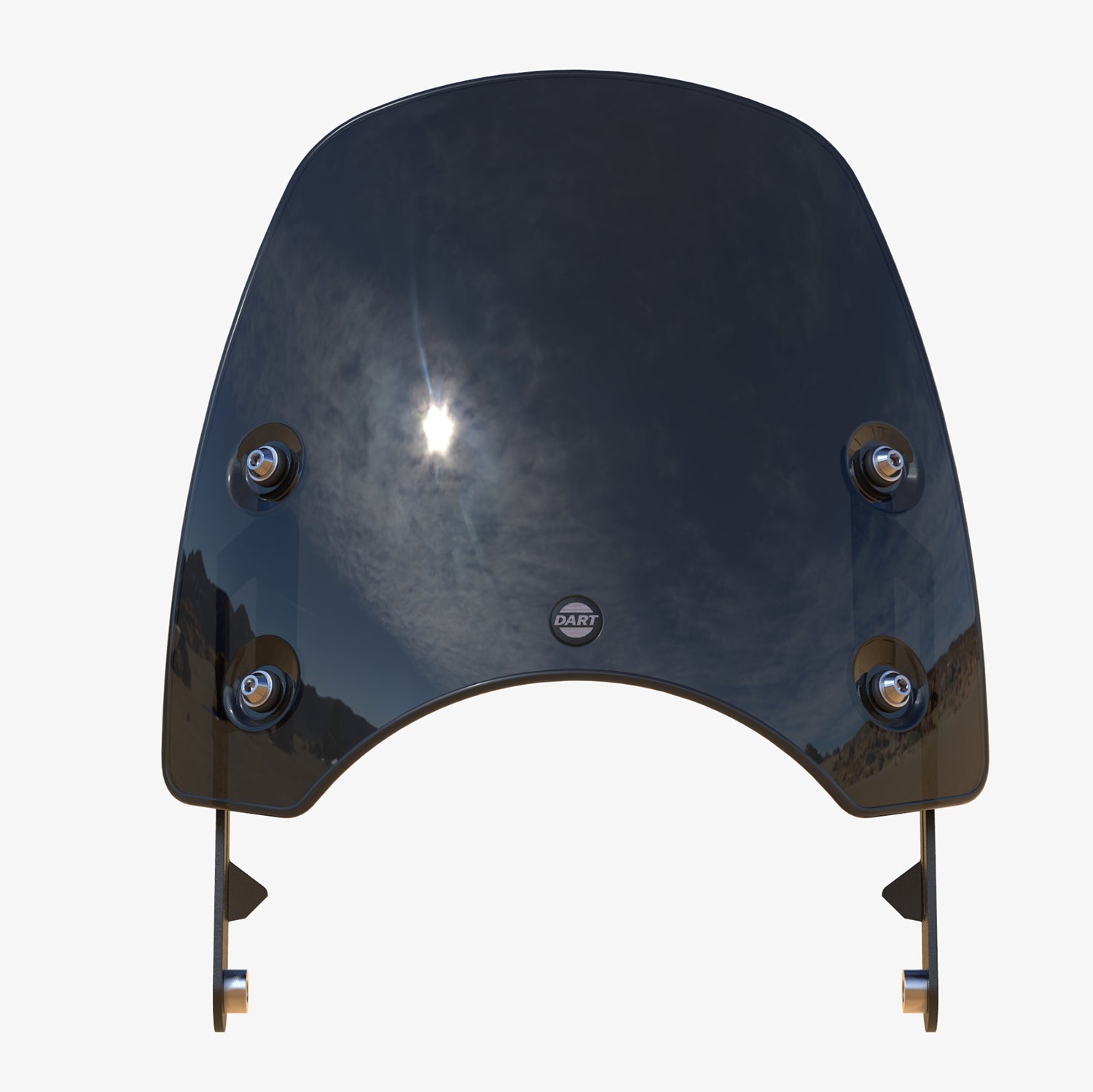

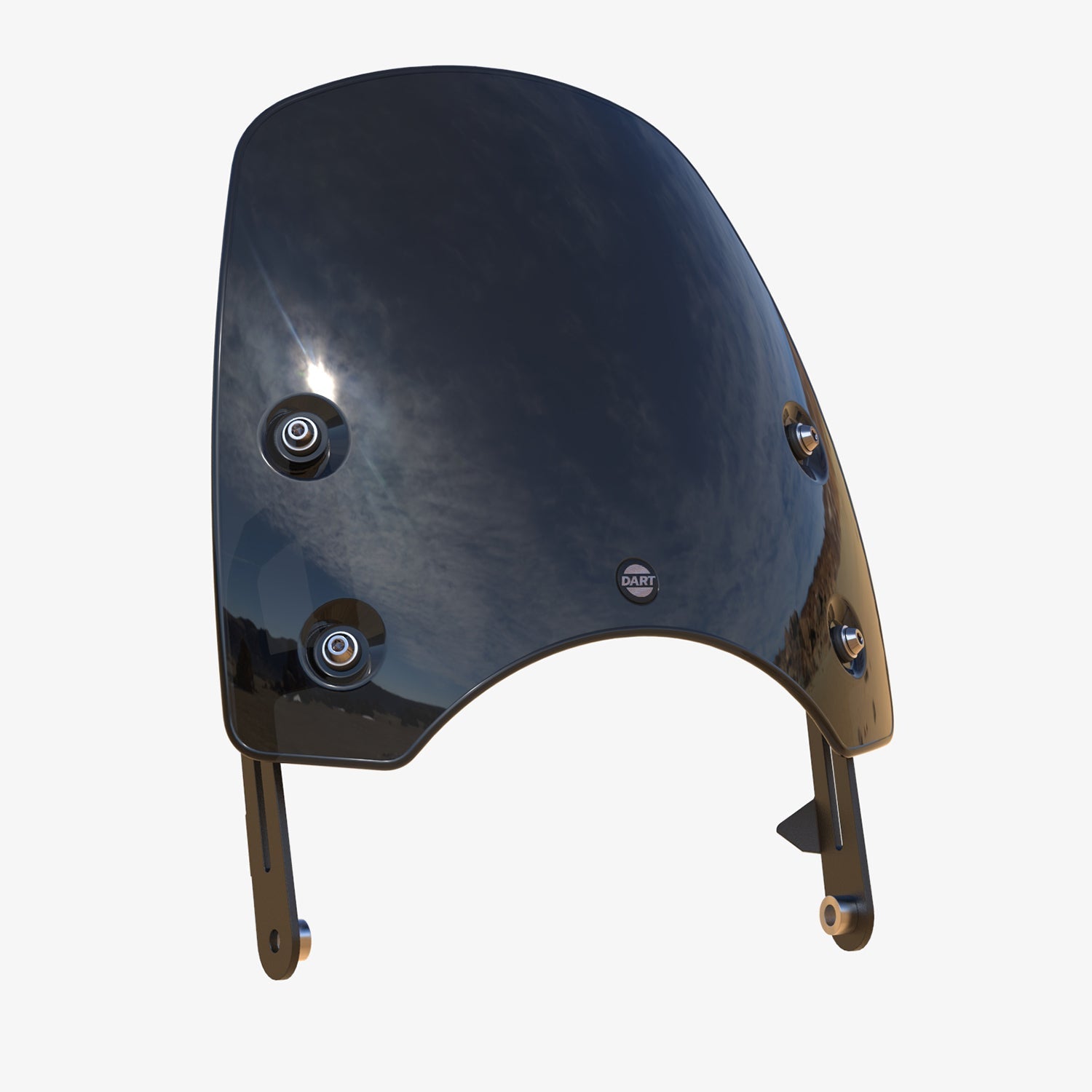

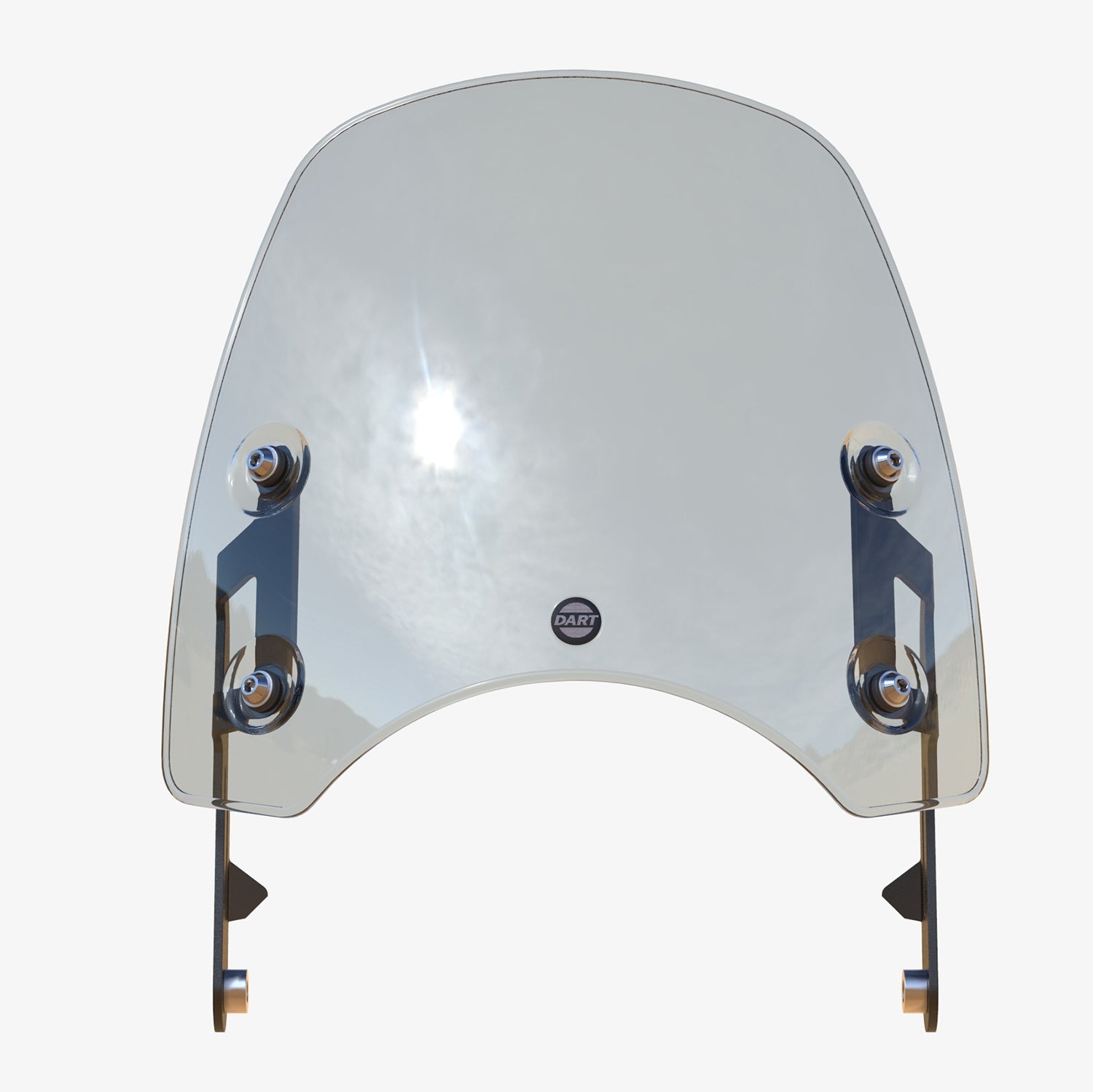

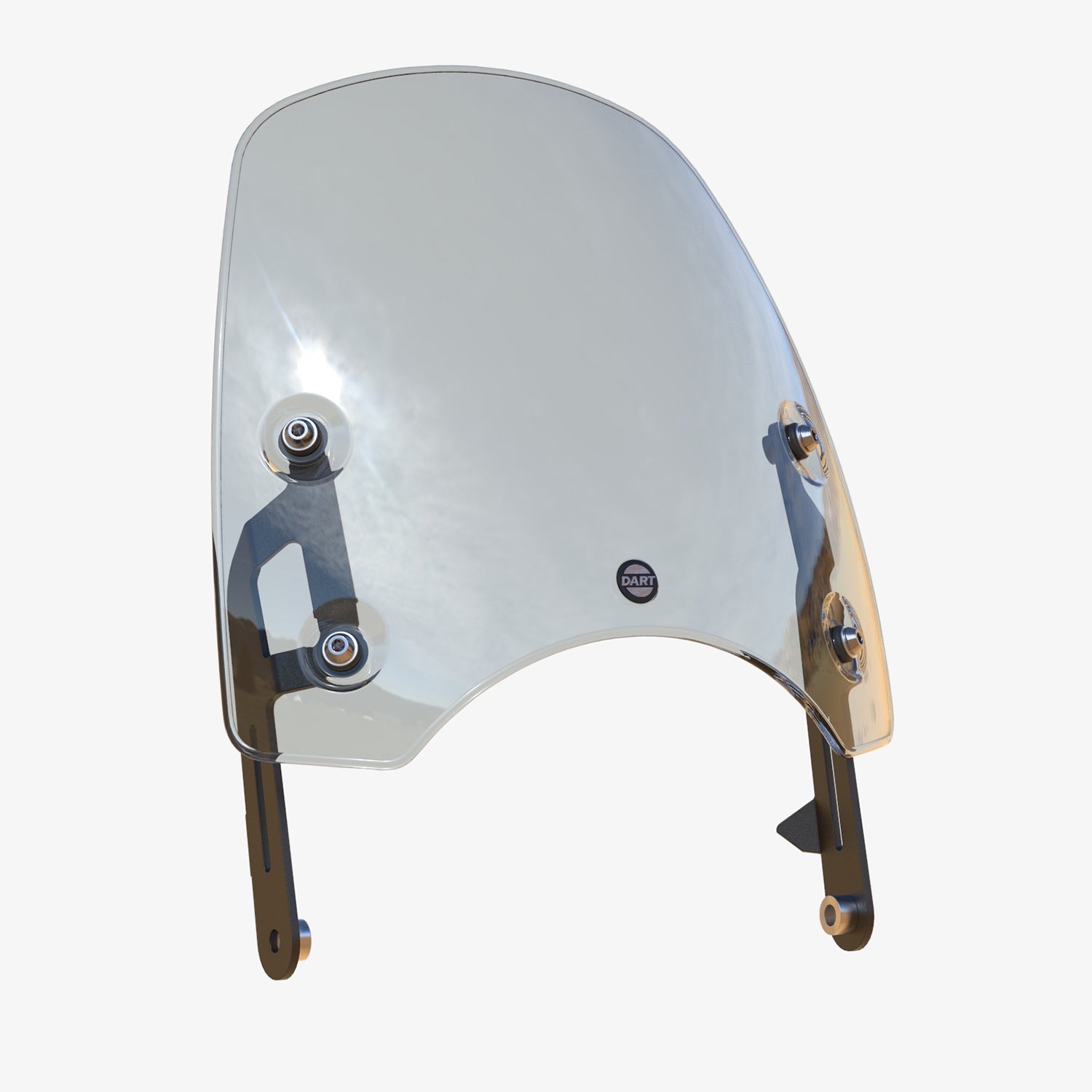

Dart Series 3 Flyscreen for Triumph Speed Twin 1200 (2020+)

This premium-quality accessory enhances both aesthetics and aerodynamics. Expertly designed for a seamless fit, it provides improved wind protection for Triumph Speed Twin 1200 models from 2020 and onwards. Crafted from durable materials, it guarantees longevity.

The flyscreen is not only perfect for optimizing airflow and reducing turbulence but also complements the bike's classic look. For motorcycle enthusiasts seeking the perfect blend of style and function, this is an essential upgrade.

Series 3 Flyscreen features:

• Precision Fit for Triumph Speed Twin 1200 (2020+): Expertly designed for perfect, seamless integration with recent Speed Twin models, enhancing bike aesthetics.

• Enhanced Aerodynamics: The Dart Series 3 Flyscreen effectively reduces wind turbulence, offering a smoother ride and optimized airflow for riders.

• Durable & Long-Lasting: Crafted from robust materials, this flyscreen promises longevity and resilience against everyday wear and tear.

• Classic Look Complement: While providing essential wind protection, the flyscreen effortlessly augments the bike's iconic design, appealing to style-conscious riders.

Specification:

• Injection-molded screen in 4mm thick high-impact automotive-grade polycarbonate

• Dimensions: 275mm (10.75") wide x 275mm (10.75") tall. Distance from top of the headlight cutout to top of the screen: 240mm (9.5")

• Dartec II anti-scratch hard-coating for extended life

• Mounting brackets in laser-cut aluminum, CNC-folded and powder-coated in black textured finish

• Custom EPDM grommets to absorb vibration

• Custom stainless steel screen mounting bolts with grommet ring and positive stop

• Microfiber cleaning cloth

Fits all water-cooled Street Twin / Speed Twin 900 models. Please select the correct year from the drop down list.

Package Includes:

• 1 X Polycarbonate Screen
• 4 X EPDM Rubber Grommets
• 1 X Left Hand Mounting Bracket
• 1 X Right Hand Mounting Bracket
• 2 X M8 X 30mm Stainless Screws
• 2 X Stainless Bushes
• 2 X M8 Stainless Washers
• 4 X Stainless Hex Head Machine Screws
• 4 X M6 Stainless Washers

Fitting Instructions:

1. Fit the grommets to the screen - this is best achieved from the back of the screen blade.
2. Using a Torx T40 socket, remove the bolt holding the headlamp to the right-hand headlamp bracket.
3. Fit an M8 washer onto one of the M8 x 30mm bolts, then the right-hand screen bracket, and finally one of the stainless bushes. Now fit this assembly onto the right-hand headlamp bracket and tighten the bolt. Ensure that the triangular part at the back of the screen mounting bracket is resting in the ‘V’ of the headlamp bracket before tightening.
4. Repeat the operation for the left-hand side. If one side is fully tightened before the other is attempted then the headlamp should not need readjusting.
5. With both brackets fixed, hold the screen blade in position and loosely fit the bottom two hexagon head machine screws with their washers, ensuring that they engage in the captive nuts on the brackets. Do not tighten these yet.
6. Fit the top two machine screws. Once everything is in position, gradually tighten all the screws evenly until they are seated on the brackets.
7. Double-check that everything is sufficiently tight and if so, fitting is now complete!

MAINTENANCE: No special maintenance is required. Do not use solvents to clean - just warm soapy water. Many proprietary glass cleaners are suitable for polycarbonate - check the label before trying.

IMPORTANT NOTICE: Whilst the screen provides a good level of impact protection, it is not warranted unbreakable. It is NOT a substitute for eye protection, which should be worn at all times while riding.
